PU Resin Polyol Isocyanate for Outsole

Get Latest Price

Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order:	1000 Kilogram
Transportation:	Ocean
Port:	Shanghai

Option:

Hardness (Shore A ):55-75
Tensile strength (MPa):3.2-4.0
Elongation (%):340-450
Cream Time (s):8-10

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: A-8070/B-8016

Brand: Xuchuan

Place Of Origin: China

Types Of: Synthetic Resin And Plastics

Product: PU Resin

Applications: shoe sole

Appearance: Liquid

Packaging & Delivery

Selling Units	:	Kilogram
Package Type	:	20&225kg/drum
Picture Example	:

Product Description

XuChuan Chemical

------We provide polyurethane resin

Polyurethane Raw Materials

Our supports to customer :

good quality &stability material
reasonable&competitive price
local technical supports
perfect after sell service

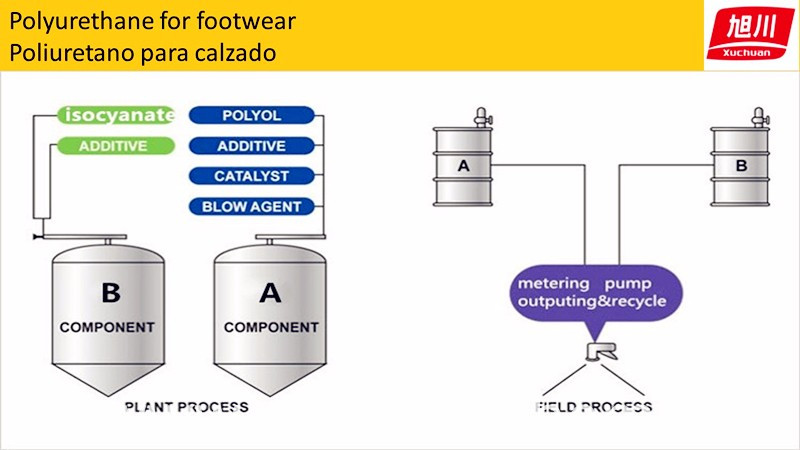

Polyurethane for footwear sole

usage for insole:more soft,( 58362987,20~50shore C),density:280~500kg/m³
Usage for soft Sole:Low Density(300~450kg/m³) ,shore A: 40~58 (sandal&slippers&Casual sole)
Usage for mid-hardness:450~900kg/m³shore A:45~72(safety shoe,boot)
Usage for high-hardness sole:density:300~600kg/m3 shore A:60~95(wedge sole,high heel sole)

XUCHUAN Chemical

------to be your powerful suplier in China

------five factories in China,capacity of 300,000ton/year,beside Shanghai port,export more than

35countries,powerful agent in Iran,Pakistan,India,south America,and more than 20 distributions

in the Asia.

Raw Material Polyester Resin

company website:www.Chinaxuchuan.com

company video : https://www.youtube.com/watch?v=bPEz7uyhkMs

Technical data

Shoe Sole Pu Chemical

A-8070/B-8016

Typical properties of PU matrix

Name of products	Appearance	Viscosity (mPa·s/40℃)	Density (g·cm^-3/40℃)	Package(kg)
A-8070	cream white liquid	1000~1400	1.01~1.02	18
B-8016	Yellowish transparent liquid or waxy	600~800	1.08~1.2	20

Materials preheat

A-8070: preheated at 50~60℃ for 6~8 hours

B-8016: preheated at 50~60℃ for 8~12 hours

Typical processing parameters & Reaction parameter

Items

A/B Materials Temperatures(℃)

A+C/B Mix ratio

(By weight)

Cream Time (s)

End of Rise Time (s)

Free Rise Foam Density(g/cm³)

Mold Temperature(℃)

Demold Time(min)

Parameter

40~45/38~42

100/80~82

8~10

60~70

0.24~0.26

45~55

5~7

Physical properties

Items

Molded Density (g/cm³)

Hardness

(Shore A )

Tensile strength

(MPa)

Elongation

(%)

Tear Strength

(kN/m)

Ross Flexing

(room temperature)

Physical properties

0.40~0.60

55~75

3.2~4.0

340~450

16~25

40,000 times no crack

Company Overview

company company

Xuchuan chemical established in 2007, company registered capital is RMB 500 million. The main products are all ranges polyester polyol, polyurethane resin for shoes, water-based and solvent-free polyurethane resins for artificial leather, polyurethane bonding adhesives and polyurethane hot melt adhesives.

Now Xuchuan has 4 modern production bases, production capacity reached 630,000 tons per year, products exported to 32 countries and regions in the world.
